제품 소개세트 웨이차이 디젤 엔진 발전기

110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance

제가 지금 온라인 채팅 해요
인증
중국 JIANGSU STONE POWER CO.,LTD 인증
중국 JIANGSU STONE POWER CO.,LTD 인증
우리는 500kva에 관하여 당신의 상품을 얻게 기쁩니다. 질은 그것, 그것으로 좋습니다, 우리의 클라이언트 입니다 만족시킵니다이었습니다 진짜로 좋은 협력!

—— Pattawit

우리는 스페인에서, 우리 방문합니다 이 facotory 오고 그(것)들에서 2개의 gensets이라고 사, 몇 달 동안, 질입니다 좋고, 좋은 협력 사용했습니다!

—— Rodrigo Calabrano

110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance

110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance
110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance 110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance 110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance 110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance

큰 이미지 :  110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance 최고의 가격

제품 상세 정보:
Place of Origin: CHINA
브랜드 이름: STONE POWER
인증: CE,BV,ISO,CCS
Model Number: SW100E5
결제 및 배송 조건:
Minimum Order Quantity: 1
가격: negotiate
Packaging Details: null
Delivery Time: 30
지불 조건: T/T 또는 LC, D/P
공급 능력: 한 달에 50 대
상세 제품 설명
시작 시스템: 24V DC 전기 시동 모터 냉각 시스템: 수냉식
전력 범위: 20-2000kW 자격증: ISO, CE
정격 속도: 1500/1800rpm 대기 전원: 110KVA88KW
보증: 1000 시간 또는 12개월 제어 시스템: 스마트겐, 딥시,
강조하다:

Weichai diesel generator set 110KVA

,

standby power generator 88KW

,

diesel generator set with 22L/h fuel consumption

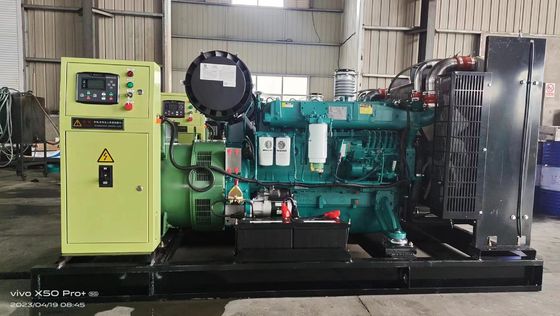

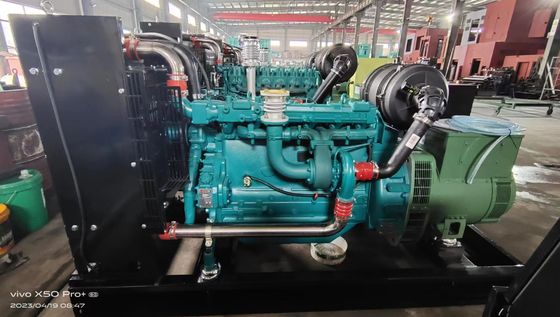

Product Description:

The Weichai Diesel Generator Set is a reliable and efficient power solution suitable for a wide range of applications. With a noise level of ≤105dB(A), this generator set operates quietly, making it ideal for both indoor and outdoor use.

Equipped with advanced control systems from Smartgen and Deepsea, the Weichai Diesel Generator Set ensures precise monitoring and management of power output, enhancing overall performance and reliability. The sophisticated control systems allow for seamless integration with various applications, providing users with flexibility and convenience.

The starting system of the Weichai Diesel Generator Set features a 24V DC Electric Starting Motor, ensuring quick and reliable startup whenever power is needed. This efficient starting system contributes to the overall reliability of the generator set, making it a dependable source of power in critical situations.

With a fuel tank capacity ranging from 5 to 1000 liters, the Weichai Diesel Generator Set offers extended running times and reduced maintenance requirements. The ample fuel tank capacity ensures continuous operation without frequent refueling, making it a practical and cost-effective power solution for various industries and settings.

Featuring a power range of 20 to 2000 kW, the Weichai Diesel Generator Set provides versatile power output options to suit different needs and applications. Whether used for standby power in emergencies or continuous power in remote locations, this generator set delivers consistent and reliable performance to meet diverse power demands.

Get Quote Now to discover the competitive price of the Weichai Diesel Generator Set and take advantage of its advanced features and capabilities. With its efficient design, reliable performance, and wide range of power options, this generator set offers a cost-effective solution for businesses, facilities, and projects requiring dependable power supply.



Technical Parameters:



Generator set Model No. SW100E5
Standby power 110KVA88KW
Rated power 100KVA/80KW
Output voltage 380-415V/3 phase
Rated speed (r/min.) 1500
Noise level(7m) 72 dB (silent type)
Power factor COSΦ=0.8(lagging)
Phase/wires 3 phase 4 wires
Start mode Electric
Fuel consumption

22L/h (100% load)

15.7L/h (75% load)

Max currency(amps) 153 (415v) /159 (400v)
Protection Low oil-pressure, High water temperature, Over-speed, Over-current.
Engine Brand Weichai
Model WP4.1D113E200
Rated speed (r/min.) 1500
Cylinder layout 4 in line
Fuel 0# light diesel
Compression Ratio 17.5:1
Engine Power (prime/standby) 101KW/113KW
Aspiration Turbo charged&Intercooled
Governor/Class Electronic
Bore and stroke 105×118 mm
Start mode DC24V electric start
Displacement 4.1 L
Alternator Brand Wattek
Model WHI 274C
Protection IP23
Insulation class H
Frequency 50 Hz
Frequency fluctuation ≤±0.5 %
Voltage distortion <4%
Output (Cont./standby) 100KVA/110KVA
Rated voltage 380-415V adjustable
Phase 3
Frequency regulation ≤±0.5 %(stable)
Voltage control AVR







Technical parameters of Control Panel:
Brand Smartgen Model HGM 4010N 110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance 0
Function:

• Start or Stop Generator set manually / automatically

• Open controller output can be defined as Pre-heat/Idle output

• High Coolant temperature protection

• Low Oil pressure protection

• Over load protection

• Generator over/under frequency protection

• Generator over/under/unbalance voltage Protection

• Over speed protection

Note:Indicate this function depend on the set points of the controller in field.



Optional accessories
Engine • Heater • Battery Charger
Alternator • Permanent Magnet Generator(PMG)
Control system • Remote Control Panel • Auto Transfer Switch (ATS) • Paralleling System
Fuel system • Daily Fuel Tank • Water Separator • Fuel Level Sensor
Others • Rainproof Type • Soundproof Type • Trailer Type • Extra spare Parts



Standard Accessories Open type Silent type
Sound-proof & Weather-proof Canopy N/A
Daily base fuel tank. 8 hours capacity Optiona
Single-bearing generator again drops
Intelligent LED display control panel
Speed governor
Electric start and 12v charger
Standard air filter, oil filter, fuel filter
Cooling water tank
High-efficient muffler
Circuit breaker
Exhaust elbow
Storage battery&cable&charger
Steel base-frame against vibration
Soft pipe for fuel and handle for lube going-out
Operation& Maintenance manual.



 Drawing Dimension
110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance 1

Open type: 2000*940*1150 mm

900 kg



110KVA88KW Standby Power Fuel Consumption 22L/h 100% Load 15.7L/h 75% Load at a Favorable for Performance 2

Silent type: 2800*1100*1600 mm

1,550 kg







Applications:

The STONE POWER Weichai Diesel Generator Set model SW100E5 is a reliable and efficient power solution originating from CHINA. With a wide power range of 20-2000kW, this generator set is suitable for various applications and scenarios.

One of the key attributes of this generator set is its efficient and stable performance, making it ideal for different sizes of operations. Whether it is a small business, a large industrial facility, or an emergency backup power source, the SW100E5 can deliver consistent power output to meet the requirements.

Due to its versatility and reliability, the STONE POWER Weichai Diesel Generator Set is a more cost-effective solution compared to other power sources. Its water-cooled cooling system ensures optimal performance even in demanding conditions, while keeping the noise level below 105dB(A) for a quieter operation.

Equipped with a choice of Smartgen or Deepsea control systems, users can easily monitor and manage the generator set for seamless operation. Additionally, the warranty of 1000 hours or 12 months offers peace of mind regarding the product's durability and longevity.

Whether for standby power in critical facilities, prime power in remote locations, or continuous power in industrial settings, the STONE POWER Weichai Diesel Generator Set SW100E5 can be ordered with a minimum quantity of 1, with pricing to be negotiated. The delivery time of 30 days ensures timely access to this dependable power solution.



Support and Services:

Weichai Diesel Generator Set product technical support and services include:

- Installation guidance and support

- Operation training for users

- Regular maintenance recommendations

- Troubleshooting assistance

- Warranty coverage and claims handling

- Spare parts availability and ordering



Packing and Shipping:

Product Packaging and Shipping:

Our Weichai Diesel Generator Set is carefully packaged to ensure safe delivery to our customers. Each generator set is securely enclosed in a durable wooden crate to prevent any damage during transportation.

For shipping, we partner with trusted and reliable shipping companies to deliver the generator set to your desired location. Our team ensures that the product is loaded and shipped efficiently to reach you in a timely manner.
